Downhole PinPoint Injection Packer Retrievable Treating Straddle Packer

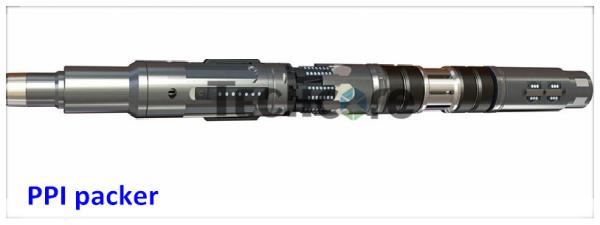

The PPI packer is a kind of retrievable packer, the full name is PinPoint Injection packer, it is designed with features of a one foot spacing between packer elements and this spacing will help to ensure that the maximum number of perforations within a long producing interval can be broken down to accept stimulation fluids uniformly. The PinPiont packer is a Halliburton packer, which is composed of a straight J-slot drag block body. The collar locator can be run either above or below the PPI packer if needed. The fluid passage through the center of the bottom packer is closed off with the retrievable plug or ball included in the conversion kit.
The PPI packer is run slightly below the required setting position to set the packer and is then picked up and rotated several turns. If the tool is on the bottom, only a quarter-turn is required. However, in deep or deviated holes, several turns with the rotary could be necessary
Technical Parameter of PPI packer for casing 7 5/8" - 9 5/8"
|
Casing Size in.
|
Packer ID in. (cm)
|
Nominal Casing Weight lb/ft |
Minimum Casing ID in. (mm) |
Maximum Casing ID in. (mm) |
Length in. (cm)
|
Max working pressure psi |
| 7 5/8 |
1.50
(3.81)
|
24 - 39 |
6.509
(165.32)
|
7.129
(181.08)
|
54.22
(137.72)
|
10000
|
| 8 5/8 |
1.50
(3.81)
|
24 - 49 |
7.381
(187.48)
|
8.207
(208.46)
|
89.29
(226.80)
|
7500
|
| 9 5/8 |
1.50
(3.81)
|
36 - 53.5 |
8.403
(213.43)
|
9.049
(229.85)
|
94.12
(239.06)
|
7500
|
Advantage of Techcore Oil Tools
Techcore Oil Tools expertise in design and manufacture of the Drill Stem Testing Tools and other downhole tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.
Below are the main downhole oil tools we manufactured:
RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,
Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve
Circulating valve: omni valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve
Other DST string tools: hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
